Receiver: Connects via HDMI to a large screen or projector
Transmitter: Mirrors laptops via USB-C/USB-A and mobile devices via USB. Optionally mirror without a transmitter via Apple AirPlay, Miracast or Google Cast
Watch now Trial Device Quote
What's included in the QuattroPod USB package?
The QuattroPod USB package consists of one transmitter U01 and one receiver R01:
How exactly does the QuattroPod USB work?
The receiver is connected to a screen or projector via HDMI for a wireless presentation. You can then cast your content using any one of the following methods:
a) Simple Screen Mirroring
Use your device's own built-in screen mirroring function. This includes Miracast for Windows/Android, Apple AirPlay for iOS/macOS and Google Cast using the Google Chrome webbrowser.
A split screen shared display feature from multiple sources is supported (up to 4 devices simultaneously) as well as extended desktop. In either case you do not require the QuattroPod USB transmitter.
b) via Transmitter
The transmitter connects to your notebook or MacBook via USB-C or USB-A. Alternatively, the transmitter can also be connected to the charging cable of a smartphone and tablet via USB-A port.
Within seconds your device will be mirrored to the big screen. Up to 32 transmitters can collaberate with one receiver.
Simple Setup
The QuattroPod receiver is powered by the supplied USB charger. The receiver can then be integrated into your network either via Wi-Fi or network cable.
When using the transmitter it must be connected to your Notebook/macBook via USB-C or USB-A for the video and for power. Optionally you can connect a mobile device using its charger cable to the USB-A port of the transmitter.
The Highlights
Notebook, Tablet, Smartphone
QuattroPod series can handle of all your devices. No matter if it's a notebook, tablet or smartphone: The QuattroPod USB supports Windows, macOS, iOS, Android, Chrome OS and Linux.
Ultra HD (4K)
QuattroPod USB supports 4K resolutions with 3840 x 2160 pixels for Apple AirPlay or Google Cast. The transmitter supports resolutions up to Full HD.
Apple AirPlay
You can mirror a iPad, iPhone or macOS device using Apple AirPlay. So in this case you do not require the usb transmitter.
Miracast
Windows and Android devices can also share your screen content using Miracast. Under Windows, you can also use the Touch Back function of Miracast. QuattroPod USB supports Miracast natively. So in this case you do not require the transmitter.
Google Cast
QuattroPod USB supports screen mirroring via Google Cast in your Chrome Browser for Windows or from the Control Center for Android and Chrome OS.
Up to 4 screens simultaneously
Wouldn't it be great to be able to present more than one screen at once? Now you can. QuattroPod USB supports up to 4 devices sharing one split screen simultaneously
Touch Back
The Touch Back feature allows you to wirelessly interact with a computer via your display's touch screen. Touch gestures with up to 10 finger gestures can be sent back to your Windows or macOS computer wirelessly via the receiver when using the transmitter. Without a transmitter you can use the Touch Back function of Miracast with up to 6 finger gestures on your Windows computer wirelessly.
MultiCast
MultiCast is a broadcast of one screen to multiple displays. You can mirror any device i.e. a Windows PC, MacBook, iPad, Android, to up to 8 displays via the QuattroPod transmitter.
LAN (PoE)
The QuattroPod usb receiver can also connect to your network and the internet via its LAN (PoE) port. This feature is not available on QuattroPod Lite. This is especially useful in areas with poor or no Wi-Fi reception.
Confire Cloud New
Centrally manage all your QuattroPod series devices in the cloud with Confire Cloud.
Price
Germany
All prices are in Euros and subject to VAT plus postage & packaging.
Price on request
In stock
- 1 x QuattroPod USB Transmitter U01
- + 1 x QuattroPod Receiver R01
- + Cables
Specification
|

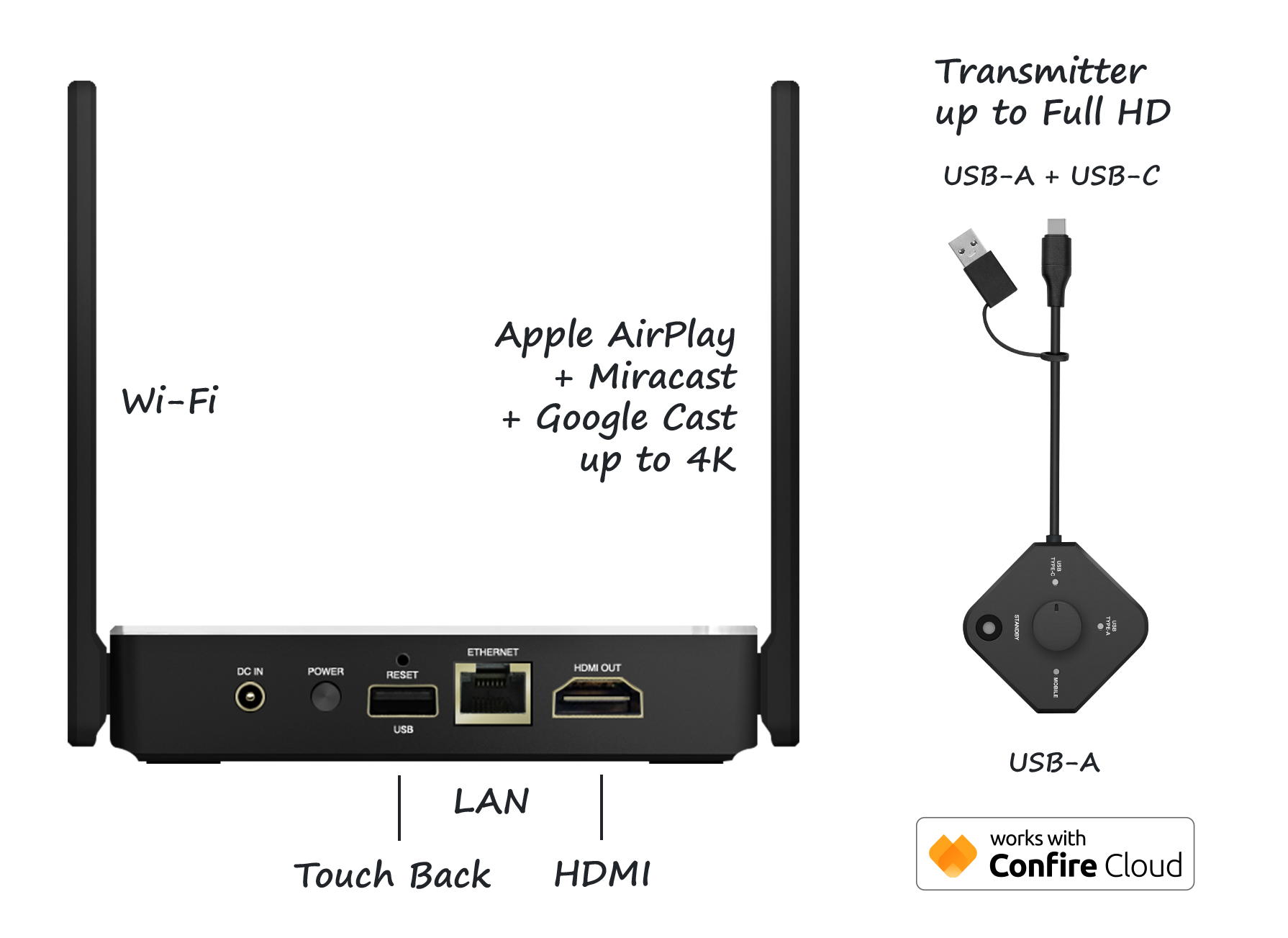

QuattroPod USB |
|
|---|---|
| Receiver R01 | |
| Ports | USB-A, HDMI, RJ45 (supports PoE) |
| Dimensions (W x D x H) | 120 mm x 80 mm x 25 mm (without antenna) |
| Power Supply | DC-in 5V/2A, PoE 5V/3A |
| Transmitter U01 | |
| Ports | USB-C output, USB-A output (with adapter), USB-A input for mobile devices |
| Dimensions (W x D x H) | 61 mm x 61 mm x 24 mm |
| Power Supply | DC-in 5V/0,9A |
| General | |
| CPU | AM8270 |
| Maximum Resolution | 4K / 30 fps 1920 x 1080 (60fps) transmitter input3840 x 2160 (30fps) receiver output |
| Wi-Fi Standard | 802.11 ac |
| Wi-Fi Frequency | 5 GHz |
| Maximum number of transmitters | 32 |
| Simultaneous casting | 4 transmitters / devices |
| Authentification protocol | WPA2-PSK |
| Special features | Supports Apple AirPlay, Miracast, Google Cast, Touch Back |
| Supported operating systems | Windows 7/8/10, macOS X 10.9 or above, iOS 9 or above, Android 5 or above, Chrome OS, Linux |
| Security | CE, FCC, BSMI, TELEC, NCC |
| Manufacturer | Winner Wave Limited, Taiwan |
| Data Sheet | Download PDF |
